Custom Cavity RF Filters

Cavity RF filters are used when microwave systems require high Q, low insertion loss and strong out-of-band rejection. The supplied catalog supports cavity bandpass filter capability and current cavity product images are available in the supplied product folder.

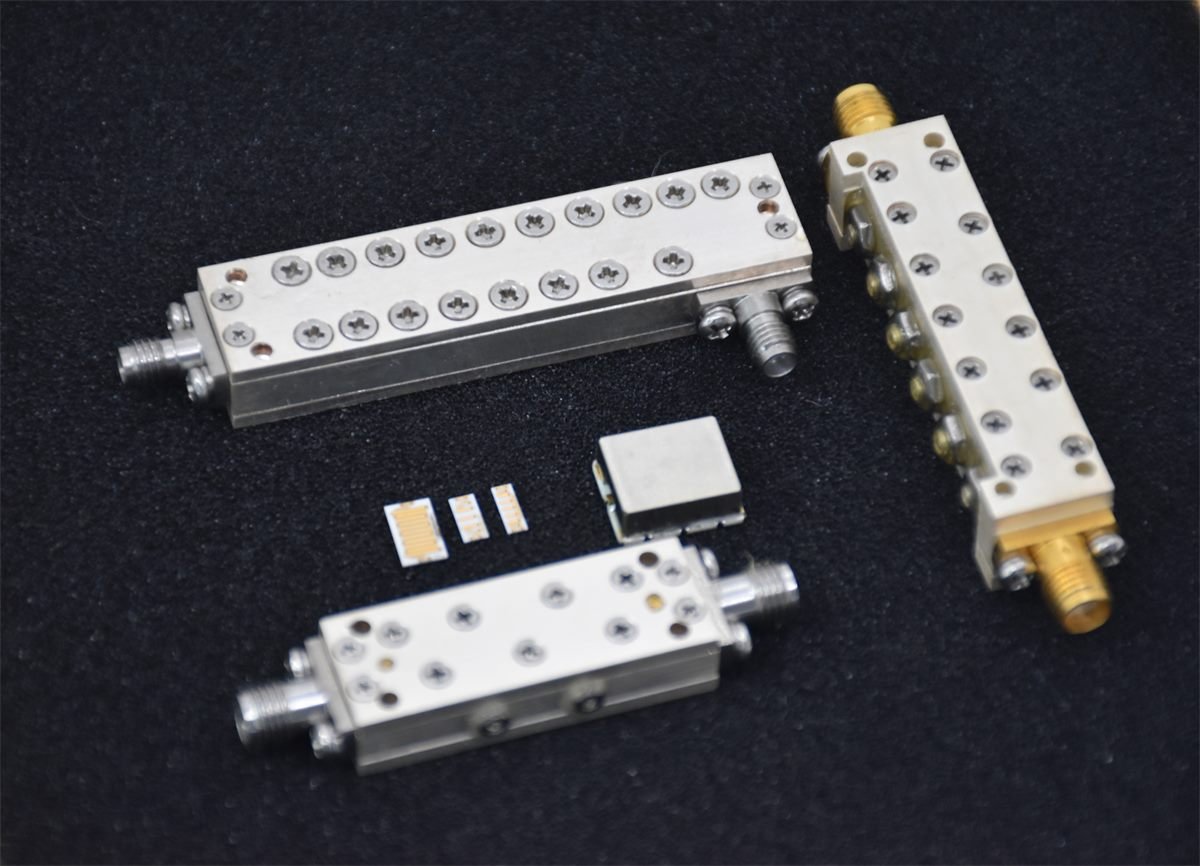

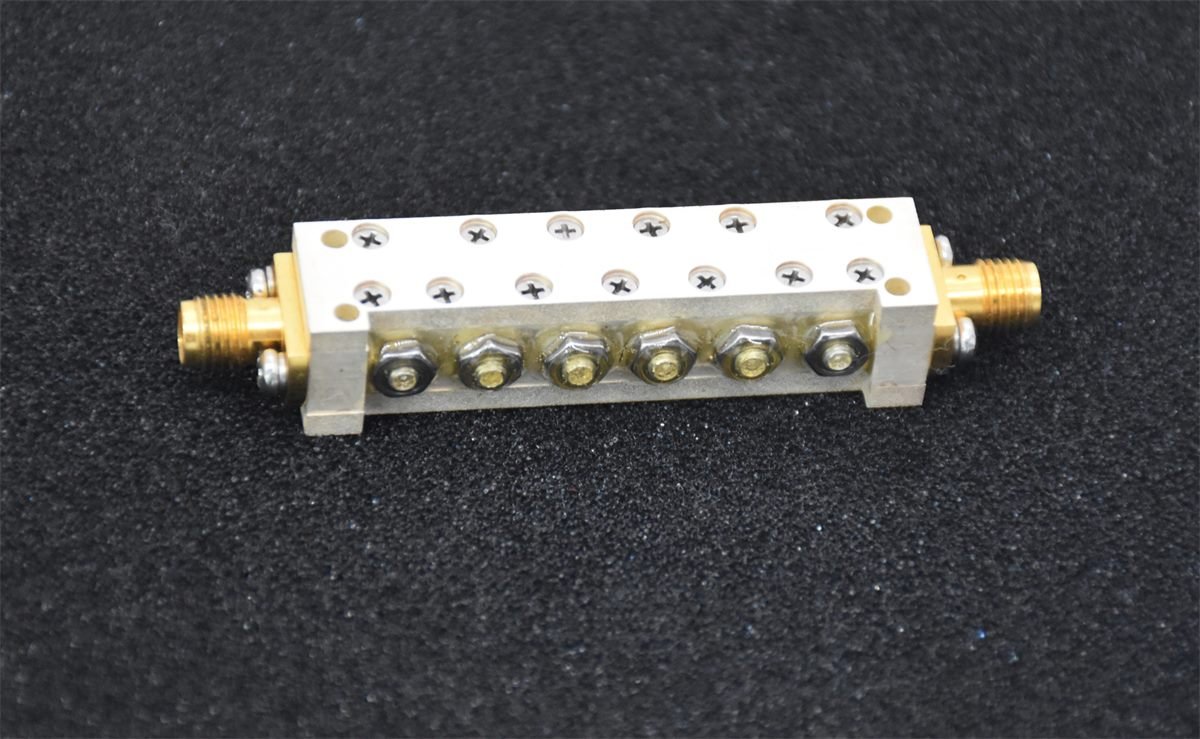

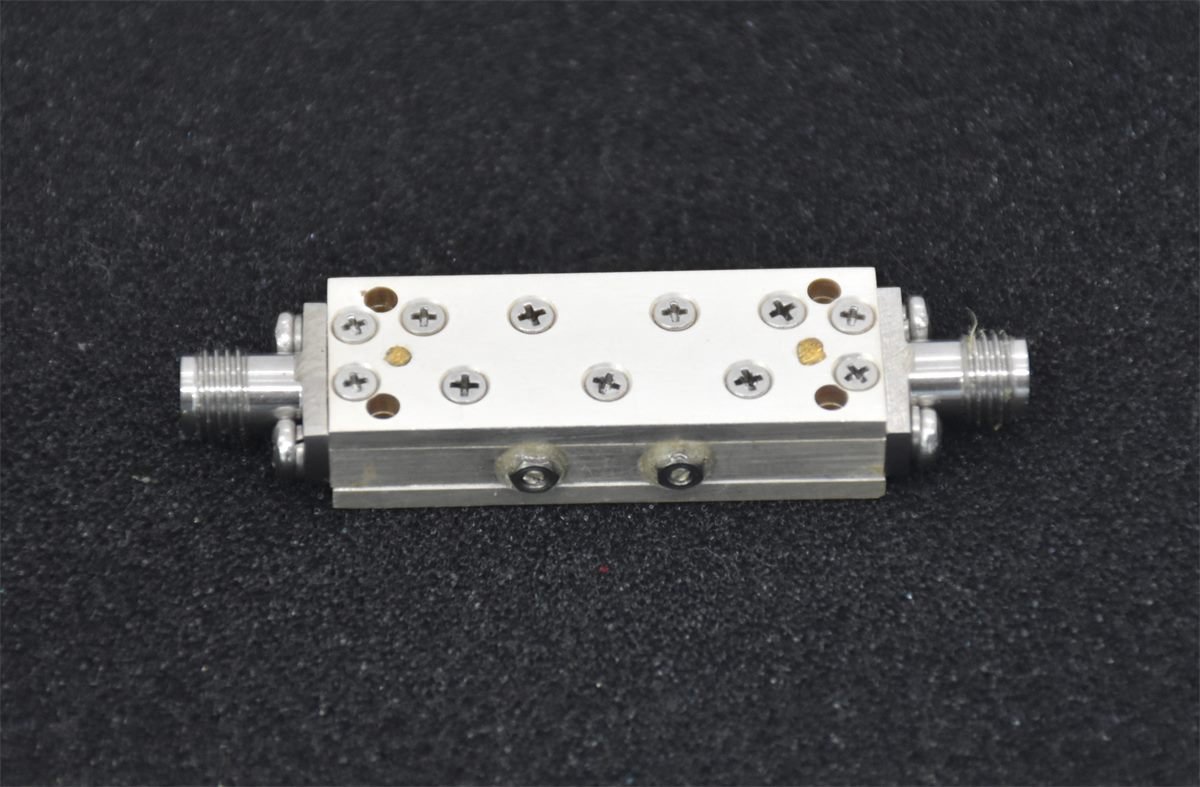

Custom cavity RF filter by Anstar Elec for high Q microwave applications — Cavity Filters product image for custom RF and microwave filter inquiry

Catalog-Backed Features

Wide frequency coverage
High Q
Low insertion loss
High out-of-band rejection
Low VSWR
Flat in-band amplitude response
Good consistency and reliability
Stable performance across temperature conditions

Typical Uses

Radar RF systems
Communication systems
Test and measurement
Custom microwave assemblies

RFQ Checklist

Please send frequency, bandwidth, rejection, insertion loss, power, connector, package size and quantity.

Request Cavity Filter Review
