What Is a Cavity RF Filter?
A practical explanation of cavity RF filters, how metal resonant cavities create frequency selection, and when engineers choose them.

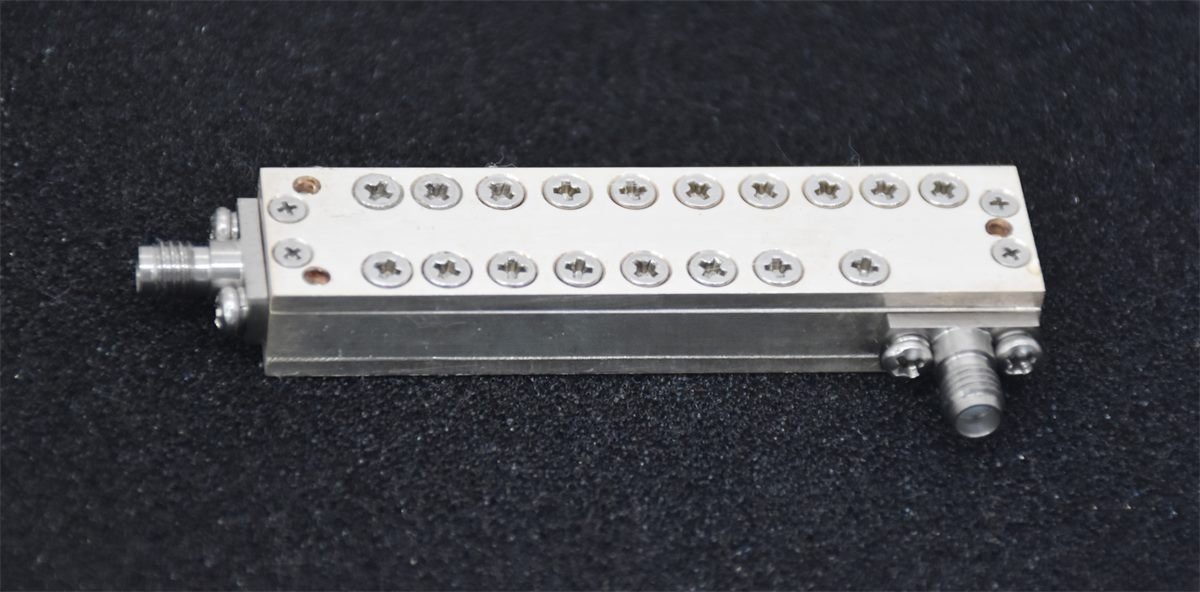

A cavity RF filter is a microwave filter that uses one or more metal resonant cavities to pass a target frequency band while attenuating unwanted signals. The cavity structure stores electromagnetic energy at specific resonant frequencies, which gives this filter type strong selectivity and stable response.
Engineers usually choose cavity filters when low insertion loss, high rejection and high Q are more important than the smallest possible package. They are often reviewed for communication systems, radar-related RF sections, test setups and high-reliability microwave assemblies.
When to Specify a Cavity Filter
- When out-of-band rejection must be high
- When insertion loss needs to be kept low
- When the system involves higher RF power
- When a mechanically robust filter package is acceptable
For custom review, send frequency, bandwidth, rejection, insertion loss, power, connector and package requirements.
